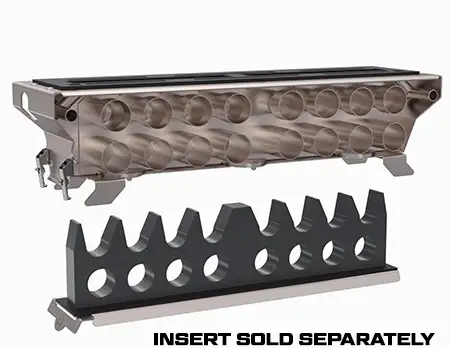

Stainless Steel Venturi Double Shoot Manifold Assembly (2.5″ tubes)
The new one-piece stainless steel double shoot manifold assemblies eliminate the problematic slide selector sticking issues, have an increased opening at the top to prevent bridging on the way to the lower shoot, and are simpler and less expensive than rebuilding with new OEM plastics.
Top Shoot & Bottom Shoot inserts SOLD SEPARATELY.
Note: If installed on a green-colored OEM John Deere meter housing, this Meter Housing Seal is required.
Note: Always use anti-seize on threads of stainless steel hardware.
Fits John Deere 1900 & 1910 air carts with 2.5-inch primary tubes.
For carts with 3-inch primary tubes go here:
Stainless Steel Venturi 3″ Double Shoot Manifold Assembly
$2,962.48
PRODUCT INFORMATION (CALL OR TEXT)
Description
SKU: JAS4798A (Tow-Between), JAS4797A (Tow-Behind)
- Fits John Deere 1900 & 1910 Air Carts with 2.5-inch primary tubes (3-inch version also available)
- Top Shoot & Bottom Shoot inserts SOLD SEPARATELY
- Simple and complete stainless replacement option
- OEM slide selector system is eliminated
- All necessary manifold seals, tube couplers, hose clamps, and stainless steel hardware included
- Compatible with aftermarket stainless and OEM John Deere meter housings
- Made in Canada by Romafa Metal Works, Inc.
- NOTE: This option is compatible with OEM John Deere meter housings; however, the bottom of the lower plastic inserts will need to be trimmed slightly
- NOTE: If installed on a green-colored OEM John Deere meter housing, this Meter Housing Seal is required.
- NOTE: Always use anti-seize on threads of stainless steel hardware.
INSTALLATION INSTRUCTIONS
Replaces John Deere part numbers:
- A64856
- A64920
- A64926
- A69543
- A70821
- A88237
- AA48757, AA48755 or AA48753
- AA50030
- AA61976
- AA71722
- AA50642
- A61522
- A61523
- A61524
- A61525
- A62188
- A63949
- A63347
- A64787
- A64788
- A64913
- A64914
- A63341
- A63342
- A63349
- A63350
- A64021
- A70705
Keyword: JAS479*A
Additional information
| Weight | 93 lbs |
|---|---|
| Dimensions | 45.5 × 13 × 11 in |
| Tank Orientation | Tow-behind, Tow-between |
